ZAPTEC

Written By Ashley Denton

GO

From £1060 Including Standard Installation

“No matter what you drive or where you’re going, Zaptec Go is the surest way to power your journey. Built on leading edge Norwegian green technology, they’ve created an award-winning charger, that’s as smart on the inside as it is simple on the outside.”

Zaptec Installation NorVolt EV

Future-ready and up-to-date

Packed with state-of-the-art tech, and always online with WiFi or 4G LTE-M, Zaptec Go keeps itself up-to-date with the latest functions and updates. All you have to do is charge your car.

Place it anywhere

This discrete and stylish electric car charger is about the size of a digital tablet and won’t look out of place on the front of your home

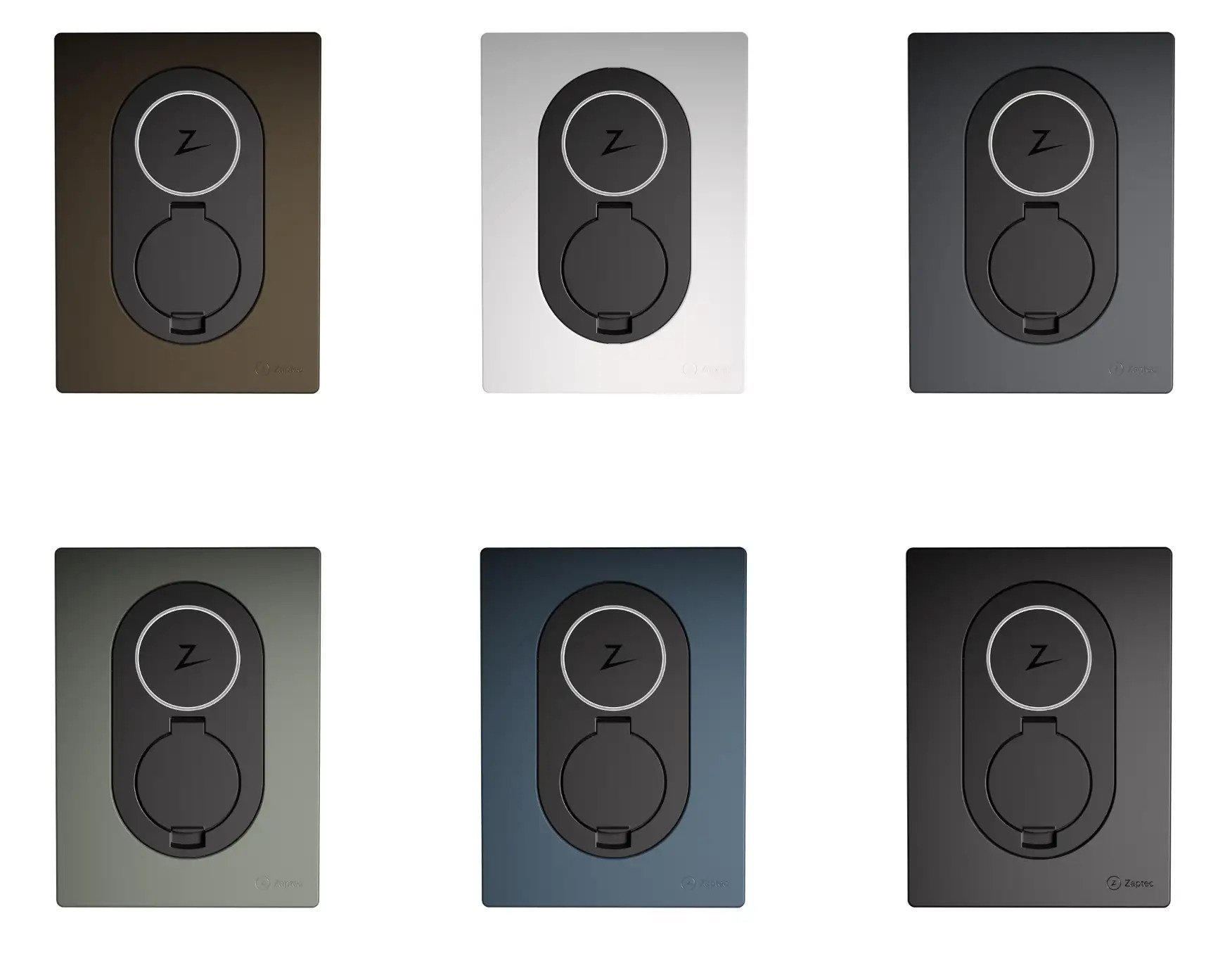

One size, 6 colours

Every part of Zaptec Go is carefully considered. From its limited number of parts to its function-lit socket and RFID chip positioning, they’ve built this charger around highly intuitive use.

They’ve combined traditional Scandinavian Design aesthetics with leading-edge Norwegian green technology. Imagined, designed and produced on the west coast of Norway.

Zaptec Installation Norvolt EV


Specifications:

  • Fits any electric vehicle Compatible with all electric vehicles and homes.

  • Zaptec Go cleverly adapts its maximum charge to your car’s capacity, ensuring the most efficient charge possible.

  • 5 year guarantee Giving you reassurance and peace of mind for years to come.

  • Smaller and lighter Its sleek and discreet appearance is 80% smaller and lighter than similar chargers on the market.

  • Lower electricity bill Get a lower electricity bill, by charging when the electricity is cheap with the built-in scheduler.

  • 3X chargers With its intelligent design, you can install up to three Zaptec Go’s in the same house or workplace, just expand as and when needed. Built in Norway Zaptec Go is built to last. It is designed, developed and manufactured in Norway, for Norwegian conditions

  • Dimensions (mm) H: 242 x W: 180 x D: 75

  • Weight 1.3 kg

  • Installation circuit Max. 40A circuit breaker on installation circuit for charging stations.

  • Installation network, Voltages TN or TT 230VAC ± 10% Max. current and charging output 7.4kW at 32A/1 phase Charging socket IEC 62196-2 Type 2 Female Electronic lock, can be permanently locked by user.

  • Integrated residual current protection RDC-DD (6mA DC) according to IEC 62955 Electronic, automatic reset by replugging Type 2 cable.

  • Integrated open PEN fault protection BS 7671:2018 Amendment 1 :2020 clause 722.411.4.1 (iv)

  • Energy metering Integrated energy meter ~3% accuracy on readings

  • Communications interface and cloud connection/network 4G LTE-M WiFi 2.4 GHz, IEEE 802.11 b/g/n (channels 1-11)

  • HMI, Identification and configuration Bluetooth Low Energy (BLE 4.2) RFID: ISO/IEC 14443 Type A (Mifare Classic, 13.56 MHz) RGBW LED circle for device status 2W power usage at standby

  • Standards and approvals CE compliant with Radio Equipment Directive 2014/53/EU, RoHS directive 2011/65/EU, EN IEC 61851-1, IEC 61439-7 and IEC 62955

  • Temperature range –30°C to +40°C

  • Degree of protection IP54, indoor and outdoor use IK8 impact protection UL94 5VB flammability rating UV resistant

  • Electrical protection Protection class I (4kV AC and 6kV impulse, insulation) Overvoltage category III (4kV)

  • Software interfaces available Zaptec App Third-party integration alternatives (API, Webhooks). OCPP 1.6J cloud-to-cloud.
